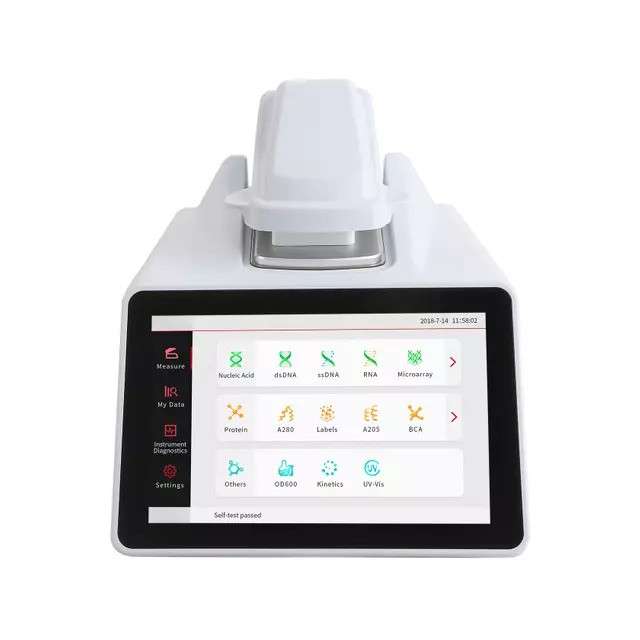

The Micro volume spectrophotometer (UV-Vis) with a built-in 7-inch color touch screen can perform all detection functions without connecting to a computer. The device has a full spectral range (190-800nm) for accurate quantitative analysis of DNA, RNA, proteins, etc. It comes with an intuitive user interface for easy operation.

The instrument requires only 0.5-2μl micro-volume samples for accurate and reproducible measurements and can detect high concentration samples without dilution. The Xenon flash lamp light source ensures that the device is ready for immediate use without any warm-up time and provides high stability and a long operating life.
Fluorescence detection function
The advanced model (SPT-NanoF) comes with fluorescence detection module. When used with fluorescence quantitative analysis kit it accurately quantifies the concentration of DNA, RNA and protein through the specific binding of fluorophore with target material.

Features

7-inch LCD touchscreen with intuitive user interface accomplishes detection without the need to connect to a computer
Only requires 0.5 - 2µl sample volume for accurate measurement.
Full spectral range of wavelength detection from 190nm to 800nm.
Simply power it on and start measuring, no need for lamp warm-up.
The Xenon flash lamp has long service life up to 10 years.
Automatic detection on lowering the pedestal arm.
OD600 function to detect concentration of bacteria and microorganisms.
For fluorescence detection, it can be used for accurate quantification of extremely low concentration nucleic acid with a lower limit of 0.5pg/µl(dsDNA).
The test result can be printed by a built-in printer or exported via USB for data analysis and storage.

Applications

The Micro Volume Spectrophotometer is used in the detection of micro-volume quantities of nucleic acids, proteins, chemical substances and liquids in laboratory, food industries, chemistry, microbiology, medicine research and development.
